API-Gateway(A.R)

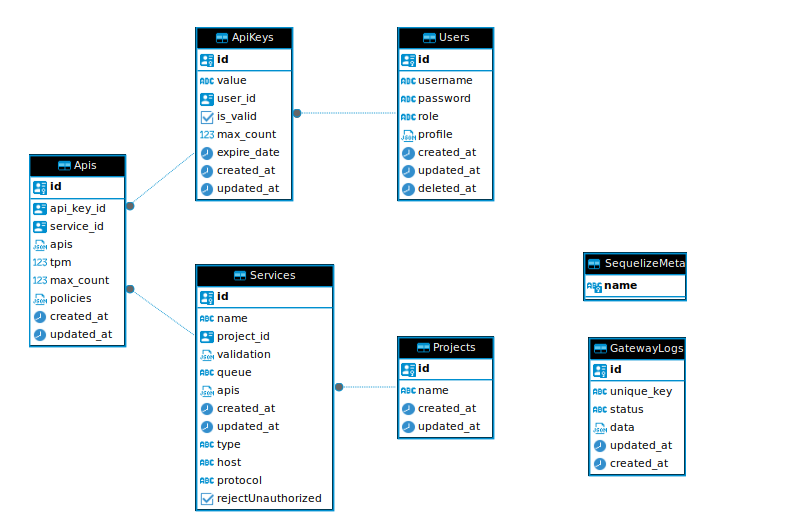

Users:

Description: Represents the users of system. such as: sgw

Relationships:

• One user can have multiple apikeys.

ApiKeys:

Description: Represents the API keys generated for users.

Relationships:

• Belongs to a user (user_id).
• Can be assigned to a service (service_id) in apis table.

Projects:

Description: Represents the projects in the system.

Relationships:

• Contains multiple services.

Services:

Description: Represents the services within projects.

Relationships:

• Belongs to a project (project_id).
• Can be assigned an API key(apikeyId) in apis table.

APIs:

Description: Represents the APIs within services.

Relationships:

• Belongs to a service (service_id) and an apikey.

gatewayLogs:

Description: Represents the logs of API responses.
